RAG Interface

System Overview

This system is designed for information retrieval and response generation, structured in three main phases:

• Preparation, when you create an instance of AbstractIndex
• Retrieval, when you surface the top most relevant chunks/items in the index and return AbstractRAGResult, which contains the references to the chunks (AbstractCandidateChunks)
• Generation, when you generate an answer based on the context built from the retrieved chunks, return either AIMessage or AbstractRAGResult

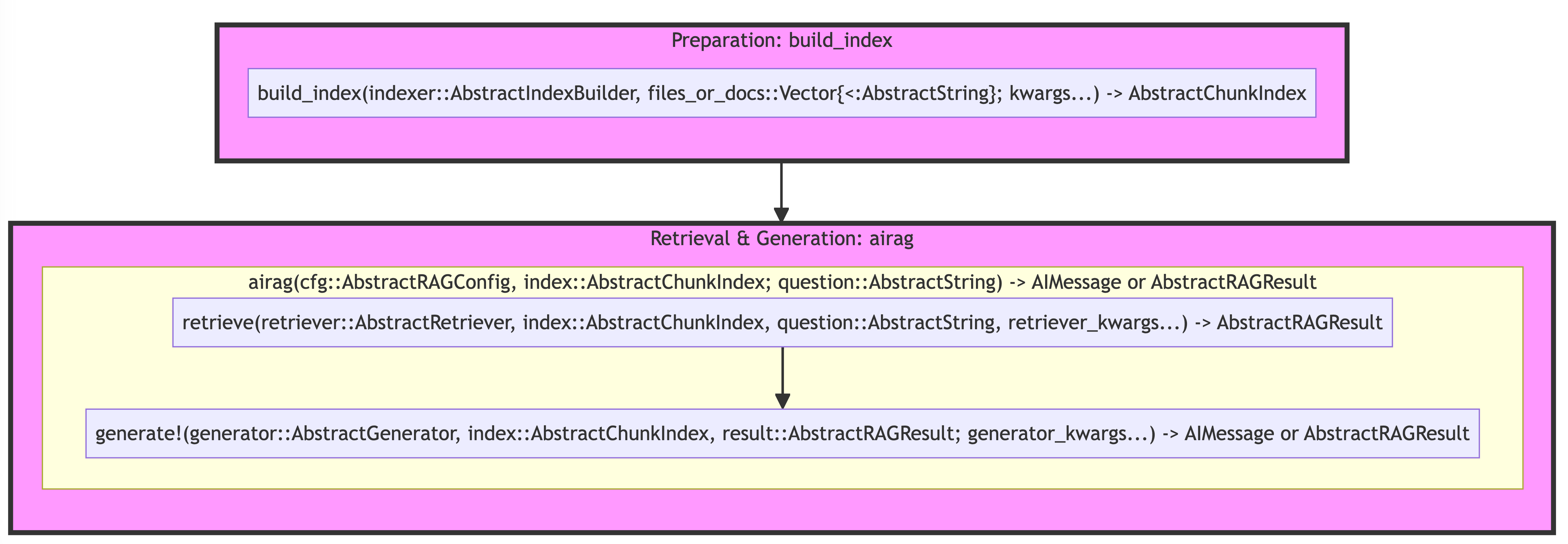

The corresponding functions are build_index, retrieve, and generate!, respectively. Here is the high-level diagram that shows the signature of the main functions:

Notice that the first argument is a custom type for multiple dispatch. In addition, observe the "kwargs" names, that's how the keyword arguments for each function are passed down from the higher-level functions (eg, build_index(...; chunker_kwargs=(; separators=...)))). It's the simplest way to customize some step of the pipeline (eg, set a custom model with a model kwarg or prompt template with template kwarg).

The system is designed to be hackable and extensible at almost every entry point. If you want to customize the behavior of any step, you can do so by defining a new type and defining a new method for the step you're changing, eg,

using RAGTools: rerank

struct MyReranker <: AbstractReranker end
rerank(::MyReranker, index, candidates) = ...

And then you would set the retrive step to use your custom MyReranker via reranker kwarg, eg, retrieve(....; reranker = MyReranker()) (or customize the main dispatching AbstractRetriever struct).

The overarching principles are:

• Always dispatch / customize the behavior by defining a new Struct and the corresponding method for the existing functions (eg, rerank function for the re-ranking step).
• Custom types are provided as the first argument (the high-level functions will work without them as we provide some defaults).
• Custom types do NOT have any internal fields or DATA (with the exception of managing sub-steps of the pipeline like AbstractRetriever or RAGConfig).
• Additional data should be passed around as keyword arguments (eg, chunker_kwargs in build_index to pass data to the chunking step). The intention was to have some clearly documented default values in the docstrings of each step + to have the various options all in one place.

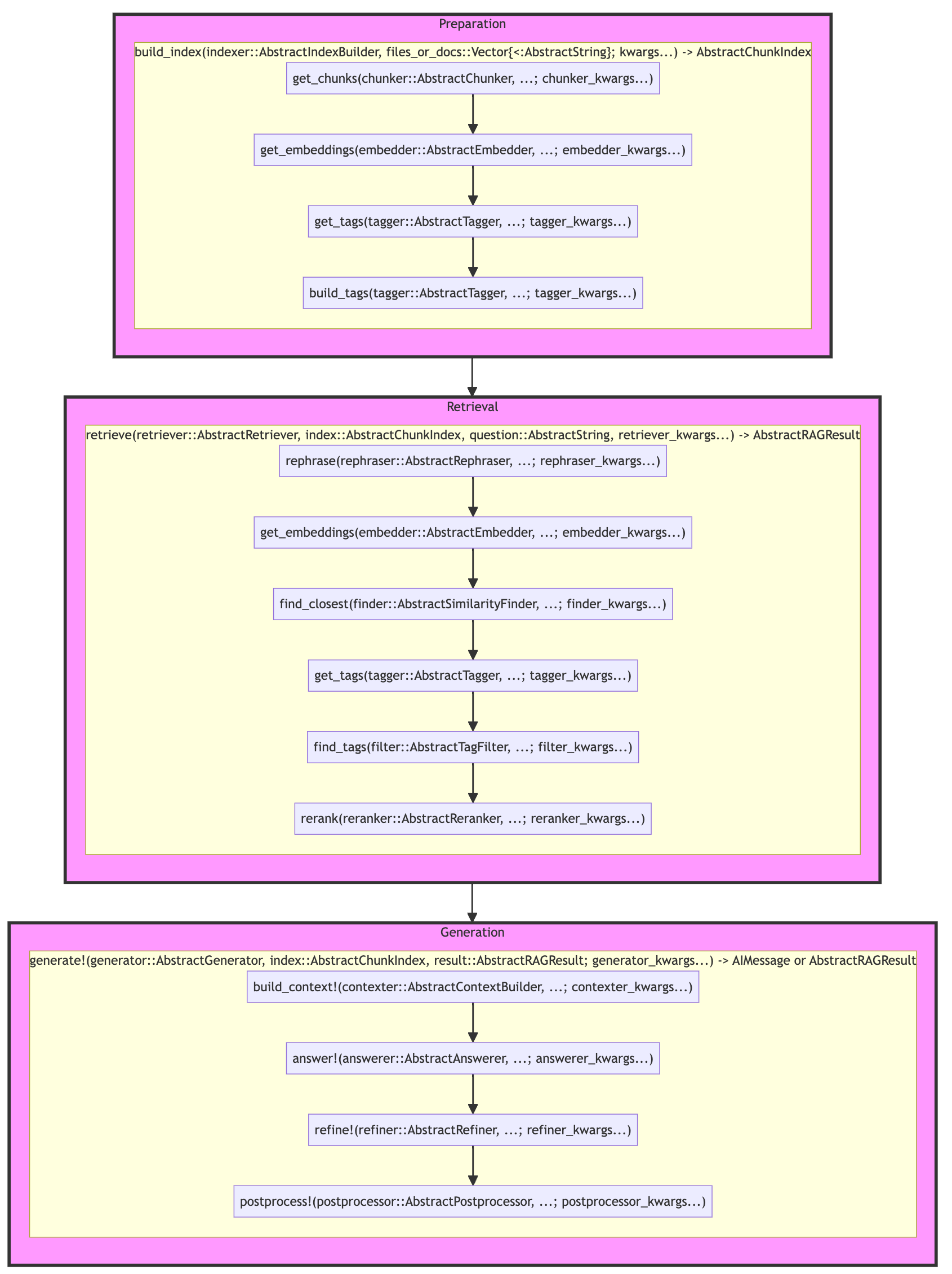

RAG Diagram

The main functions are:

Prepare your document index with build_index:

• signature: (indexer::AbstractIndexBuilder, files_or_docs::Vector{<:AbstractString}) -> AbstractChunkIndex
• flow: get_chunks -> get_embeddings -> get_tags -> build_tags
• dispatch types: AbstractIndexBuilder, AbstractChunker, AbstractEmbedder, AbstractTagger

Run E2E RAG with airag:

• signature: (cfg::AbstractRAGConfig, index::AbstractChunkIndex; question::AbstractString) -> AIMessage or AbstractRAGResult
• flow: retrieve -> generate!
• dispatch types: AbstractRAGConfig, AbstractRetriever, AbstractGenerator

Retrieve relevant chunks with retrieve:

• signature: (retriever::AbstractRetriever, index::AbstractChunkIndex, question::AbstractString) -> AbstractRAGResult
• flow: rephrase -> get_embeddings -> find_closest -> get_tags -> find_tags -> rerank
• dispatch types: AbstractRAGConfig, AbstractRephraser, AbstractEmbedder, AbstractSimilarityFinder, AbstractTagger, AbstractTagFilter, AbstractReranker

Generate an answer from relevant chunks with generate!:

• signature: (generator::AbstractGenerator, index::AbstractChunkIndex, result::AbstractRAGResult) -> AIMessage or AbstractRAGResult
• flow: build_context! -> answer! -> refine! -> postprocess!
• dispatch types: AbstractGenerator, AbstractContextBuilder, AbstractAnswerer, AbstractRefiner, AbstractPostprocessor

To discover the currently available implementations, use subtypes function, eg, subtypes(AbstractReranker).

Passing Keyword Arguments

If you need to pass keyword arguments, use the nested kwargs corresponding to the dispatch type names (rephrase step, has rephraser dispatch type and rephraser_kwargs for its keyword arguments).

For example:

cfg = RAGConfig(; retriever = AdvancedRetriever())

# kwargs will be big and nested, let's prepare them upfront
# we specify "custom" model for each component that calls LLM
kwargs = (
    retriever = AdvancedRetriever(),
    retriever_kwargs = (;
        top_k = 100,
        top_n = 5,
        # notice that this is effectively: retriever_kwargs/rephraser_kwargs/template
        rephraser_kwargs = (;
            template = :RAGQueryHyDE,
            model = "custom")),
    generator_kwargs = (;
        # pass kwargs to `answer!` step defined by the `answerer` -> we're setting `answerer_kwargs`
        answerer_kwargs = (;
            model = "custom"),
    # api_kwargs can be shared across all components
    api_kwargs = (;
        url = "http://localhost:8080")))

result = airag(cfg, index, question; kwargs...)

If you were one level deeper in the pipeline, working with retriever directly, you would pass:

retriever_kwargs = (;
    top_k = 100,
    top_n = 5,
    # notice that this is effectively: rephraser_kwargs/template
    rephraser_kwargs = (;
      template = :RAGQueryHyDE,
      model = "custom"),
  # api_kwargs can be shared across all components
  api_kwargs = (;
      url = "http://localhost:8080"))

result = retrieve(AdvancedRetriever(), index, question; retriever_kwargs...)

And going even deeper, you would provide the rephraser_kwargs directly to the rephrase step, eg,

rephrase(SimpleRephraser(), question; model="custom", template = :RAGQueryHyDE, api_kwargs = (; url = "http://localhost:8080"))

Deepdive

Preparation Phase:

• Begins with build_index, which creates a user-defined index type from an abstract chunk index using specified dels and function strategies.
• get_chunks then divides the indexed data into manageable pieces based on a chunking strategy.
• get_embeddings generates embeddings for each chunk using an embedding strategy to facilitate similarity arches.
• Finally, get_tags extracts relevant metadata from each chunk, enabling tag-based filtering (hybrid search index). If there are tags available, build_tags is called to build the corresponding sparse matrix for filtering with tags.

Retrieval Phase:

• The retrieve step is intended to find the most relevant chunks in the index.
• rephrase is called first, if we want to rephrase the query (methods like HyDE can improve retrieval quite a bit)!
• get_embeddings generates embeddings for the original + rephrased query
• find_closest looks up the most relevant candidates (CandidateChunks) using a similarity search strategy.
• get_tags extracts the potential tags (can be provided as part of the airag call, eg, when we want to use only some small part of the indexed chunks)
• find_tags filters the candidates to strictly match at least one of the tags (if provided)
• rerank is called to rerank the candidates based on the reranking strategy (ie, to improve the ordering of the chunks in context).

Generation Phase:

• The generate! step is intended to generate a response based on the retrieved chunks, provided via AbstractRAGResult (eg, RAGResult).
• build_context! constructs the context for response generation based on a context strategy and applies the necessary formatting
• answer! generates the response based on the context and the query
• refine! is called to refine the response (optional, defaults to passthrough)
• postprocessing! is available for any final touches to the response or to potentially save or format the results (eg, automatically save to the disk)

Note that all generation steps are mutating the RAGResult object.

See more details and corresponding functions and types in src/rag_interface.jl.
